Week 4: Dimensionality Reduction: Latent Variable Modelling

[jupyter][google colab][reveal]

Abstract: In this lecture we turn to unsupervised learning. Specifically, we introduce the idea of a latent variable model. Latent variable models are a probabilistic perspective on unsupervised learning which lead to dimensionality reduction algorithms.

ML Foundations Course Notebook Setup

We install some bespoke codes for creating and saving plots as well as loading data sets.

%%capture
%pip install notutils
%pip install pods
%pip install mlai

import notutils
import pods
import mlai
import mlai.plot as plot

Review

So far in our classes we have focussed mainly on regression problems, which are examples of supervised learning. We have considered the relationship between the likelihood and the objective function and we have shown how we can find paramters by maximizing the likelihood (equivalent to minimizing the objective function) in this session we look at latent variables.

Clustering

• Common approach for grouping data points
• Assigns data points to discrete groups
• Examples include:
  • Animal classification
  • Political affiliation grouping

Clustering is a common approach to data analysis, though we will not cover it in great depth in this course. The fundamental idea is to associate each data point \(\mathbf{ y}_{i, :}\) with one of \(k\) different discrete groups. This approach raises interesting questions - for instance, when clustering animals into groups, we might ask whether animal traits are truly discrete or continuous in nature. Similar questions arise when clustering political affiliations.

Humans seem to have a natural affinity for discrete clustering approaches. This makes clustering particularly useful when collaborating with biologists, who often think in terms of discrete categories. However, we should be mindful that this preference for discrete categories may sometimes oversimplify continuous variations in data.

There is a subtle but important distinction between clustering and vector quantisation. In true clustering, we typically expect to see reductions in data density between natural groups - essentially, gaps in the data that separate different clusters. This definition isn’t universally applied though, and vector quantization may partition data without requiring such density gaps. For our current discussion, we’ll treat them similarly, focusing on the common challenges they share: how to allocate points to groups and, more challengingly, how to determine the optimal number of groups.

The \(k\)-means algorithm provides a straightforward approach to clustering data. It requires two key elements: a set of \(k\) cluster centres and a way to assign each data point to a cluster. The algorithm follows a simple iterative process:

1. First, initialize cluster centres by randomly selecting \(k\) data points
2. Assign each data point to its nearest cluster centre
3. Update each cluster centre by computing the mean of all points assigned to it
4. Repeat steps 2 and 3 until the cluster assignments stop changing

This process is intuitive and relatively easy to implement, though it comes with certain limitations.

The \(k\)-means algorithm works by minimizing an objective function that measures the sum of squared Euclidean distances between each point and its assigned cluster center. This objective function can be written mathematically as shown above, where \(\boldsymbol{ \mu}_{j, :}\) represents the mean of cluster \(j\).

It’s important to understand that while this algorithm will always converge to a minimum, this minimum is not guaranteed to be either global or unique. The optimization problem is non-convex, meaning there can be multiple local minima. Different initializations of the cluster centers can lead to different final solutions, which is one of the key challenges in applying \(k\)-means clustering in practice.

import mlai
import numpy as np
import os

Clustering methods associate data points with different labels that are allocated by the computer rather than provided by human annotators. This process is quite intuitive for humans - we naturally cluster our observations of the real world. For example, we cluster animals into groups like birds, mammals, and insects. While these labels can be provided by humans, they were originally invented through a clustering process. With computational clustering, we want to recreate that process of label invention.

When thinking about ideas, the Greek philosopher Plato considered the concept of Platonic ideals - the most quintessential version of a thing, like the most bird-like bird or chair-like chair. In clustering, we aim to define different categories by finding their Platonic ideals (cluster centers) and allocating each data point to its nearest center. This allows computers to form categorizations of data at scales too large for human processing.

To implement clustering computationally, we need to mathematically represent both our objects and cluster centers as vectors (\(\mathbf{ x}_i\) and \(\boldsymbol{ \mu}_j\) respectively) and define a notion of either similarity or distance between them. The distance function \(d_{ij} = f(\mathbf{ x}_i, \boldsymbol{ \mu}_j)\) measures how far each object is from potential cluster centers. For example, we might cluster customers by representing them through their purchase history and measuring their distance to different customer archetypes.

Squared Distance

A commonly used distance metric is the squared distance: \(d_{ij} = (\mathbf{ x}_i - \boldsymbol{ \mu}_j)^2\). This metric appears frequently in machine learning - we saw it earlier measuring prediction errors in regression, and here it measures dissimilarity between data points and cluster centers.

Once we have decided on the distance or similarity function, we can decide a number of cluster centers, \(K\). We find their location by allocating each center to a sub-set of the points and minimizing the sum of the squared errors, \[ E(\mathbf{M}) = \sum_{i \in \mathbf{i}_j} (\mathbf{ x}_i - \boldsymbol{ \mu}_j)^2 \] where the notation \(\mathbf{i}_j\) represents all the indices of each data point which has been allocated to the \(j\)th cluster represented by the center \(\boldsymbol{ \mu}_j\).

\(k\)-Means Clustering

One approach to minimizing this objective function is known as \(k\)-means clustering. It is simple and relatively quick to implement, but it is an initialization sensitive algorithm. Initialization is the process of choosing an initial set of parameters before optimization. For \(k\)-means clustering you need to choose an initial set of centers. In \(k\)-means clustering your final set of clusters is very sensitive to the initial choice of centers. For more technical details on \(k\)-means clustering you can watch a video of Alex Ihler introducing the algorithm here.

\(k\)-Means Clustering

Figure: Clustering with the \(k\)-means clustering algorithm.

Figure: \(k\)-means clustering by Alex Ihler.

Hierarchical Clustering

Other approaches to clustering involve forming taxonomies of the cluster centers, like humans apply to animals, to form trees. Hierarchical clustering builds a tree structure showing the relationships between data points. We’ll demonstrate agglomerative clustering on the oil flow data set, which contains measurements from a multiphase flow facility.

Oil Flow Data

This data set is from a physics-based simulation of oil flow in a pipeline. The data was generated as part of a project to determine the fraction of oil, water and gas in North Sea oil pipes (Bishop:gtm96?).

import pods

data = pods.datasets.oil()

The data consists of 1000 12-dimensional observations of simulated oil flow in a pipeline. Each observation is labelled according to the multi-phase flow configuration (homogeneous, annular or laminar).

# Convert data["Y"] from [1, -1, -1] in each row to rows of 0 or 1 or 2
Y = data["Y"]
# Find rows with 1 in first column (class 0)
class0 = (Y[:, 0] == 1).astype(int) * 0
# Find rows with 1 in second column (class 1)
class1 = (Y[:, 1] == 1).astype(int) * 1
# Find rows with 1 in third column (class 2)
class2 = (Y[:, 2] == 1).astype(int) * 2
# Combine into single array of class labels 0,1,2
labels = class0 + class1 + class2

The data is returned as a dictionary containing training and test inputs (‘X,’ ‘Xtst’), training and test labels (‘Y,’ ‘Ytst’), and the names of the features.

Figure: Visualization of the first two dimensions of the oil flow data from Bishop and James (1993)

As normal we include the citation information for the data.

print(data['citation'])

And extra information about the data is included, as standard, under the keys info and details.

print(data['details'])

X = data['X']
Y = data['Y']

import numpy as np
from scipy.cluster.hierarchy import dendrogram, linkage
import pods

# Perform hierarchical clustering
linked = linkage(X, 'ward')  # Ward's method for minimum variance

Figure: Hierarchical clustering applied to oil flow data. The dendrogram shows how different flow regimes are grouped based on their measurement similarities. The three main flow regimes (homogeneous, annular, and laminar) should form distinct clusters.

In this example, we’ve applied hierarchical clustering to the oil flow data set. The data contains measurements from different flow regimes in a multiphase flow facility. The dendrogram shows how measurements naturally cluster into different flow types. Ward’s linkage method is used as it tends to create compact, evenly-sized clusters. You can learn more about agglomerative clustering in this video from Alex Ihler.

Figure: Hierarchical Clustering by Alex Ihler.

Phylogenetic Trees

A powerful application of hierarchical clustering is in constructing phylogenetic trees from genetic sequence data. By comparing DNA/RNA sequences across species, we can reconstruct their evolutionary relationships and estimate when species diverged from common ancestors. The resulting tree structure, called a phylogeny, maps out the evolutionary history and relationships between organisms.

Modern phylogenetic methods go beyond simple clustering - they incorporate sophisticated models of genetic mutation and molecular evolution. These models can estimate not just the structure of relationships, but also the timing of evolutionary divergence events based on mutation rates. This has important applications in tracking the origins and spread of rapidly evolving pathogens like HIV and influenza viruses. Understanding viral phylogenies helps epidemiologists trace outbreak sources, track transmission patterns, and develop targeted containment strategies.

Product Clustering

An e-commerce company could apply hierarchical clustering to organize their product catalog into a taxonomy tree. Products would be grouped into increasingly specific categories - for example, Electronics might split into Phones, Computers, etc., with Phones further dividing into Smartphones, Feature Phones, and so on. This creates an intuitive hierarchical organization. However, many products naturally belong in multiple categories - for instance, running shoes could reasonably be classified as both sporting equipment and footwear. The strict tree structure of hierarchical clustering doesn’t allow for this kind of multiple categorization, which is a key limitation for product organization.

Hierarchical Clustering Challenge

Our psychological ability to form categories is far more sophisticated than hierarchical trees. Research in cognitive science has revealed that humans naturally form overlapping categories and learn abstract principles that guide classification. Josh Tenenbaum’s influential work demonstrates how human concept learning combines multiple forms of inference through hierarchical Bayesian models that integrate similarity-based clustering with theory-based reasoning. This computational approach aligns with foundational work by Eleanor Rosch on prototype theory and Susan Carey’s research on conceptual change, showing how categorization adapts to context and goals. While these cognitively-inspired models better capture human-like categorization, their computational complexity currently limits practical applications to smaller datasets. Nevertheless, they provide important insights into more flexible clustering approaches that could eventually enhance machine learning systems.

Other Clustering Approaches

Spectral clustering (Shi and Malik (2000),Ng et al. (n.d.)) is a powerful technique that uses eigenvalues of similarity matrices to perform dimensionality reduction before clustering. Unlike k-means, it can identify clusters of arbitrary shape, making it effective for complex data like image segmentation or social networks.

The Dirichlet process provides a Bayesian framework for clustering without pre-specifying the number of clusters. It’s particularly valuable in scenarios where new, previously unseen categories may emerge over time. For example, in species discovery, it can model the probability of finding new species while accounting for known ones. This “infinite clustering” property makes it well-suited for open-ended learning problems where the total number of categories is unknown.

High Dimensional Data

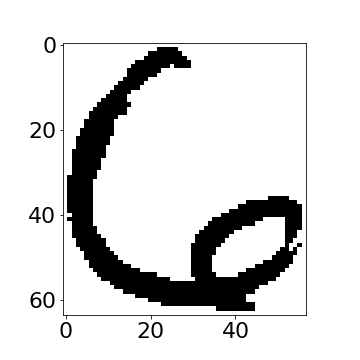

To introduce high dimensional data, we will first of all introduce a hand written digit from the U.S. Postal Service handwritten digit data set (originally collected from scanning enveolopes) and used in the first convolutional neural network paper (Le Cun et al., 1989).

Le Cun et al. (1989) downscaled the images to \(16 \times 16\), here we use an image at the original scale, containing 64 rows and 57 columns. Since the pixels are binary, and the number of dimensions is 3,648, this space contains \(2^{3,648}\) possible images. So this space contains a lot more than just one digit.

USPS Samples

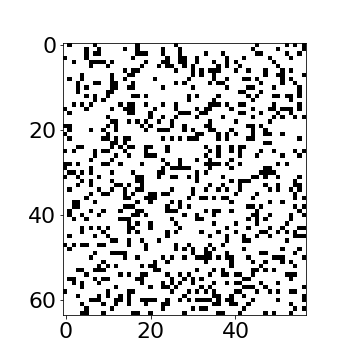

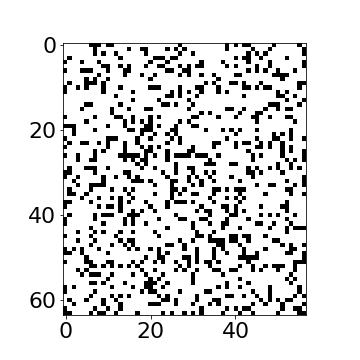

If we sample from this space, taking each pixel independently from a probability which is given by the number of pixels which are ‘on’ in the original image, over the total number of pixels, we see images that look nothing like the original digit.

Figure: Even if we sample every nano second from now until the end of the universe we won’t see the original six again.

Even if we sample every nanosecond from now until the end of the universe you won’t see the original six again.

Simple Model of Digit

So, an independent pixel model for this digit doesn’t seem sensible. The total space is enormous, and yet the space occupied by the type of data we’re interested in is relatively small.

Consider a different type of model. One where we take a prototype six and we rotate it left and right to create new data.

%pip install scikit-image

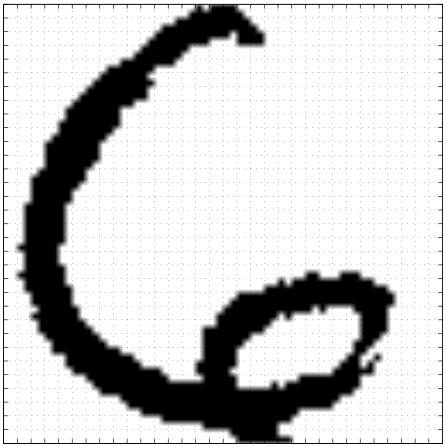

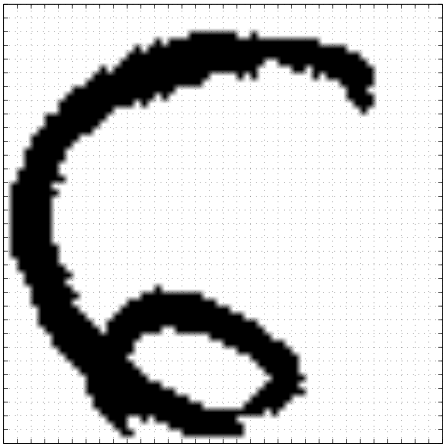

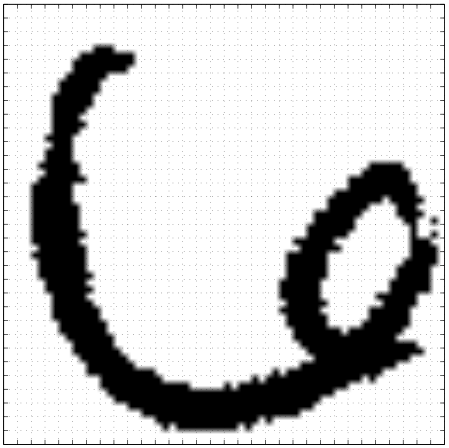

Figure: Rotate a prototype six to form a set of plausible sixes.

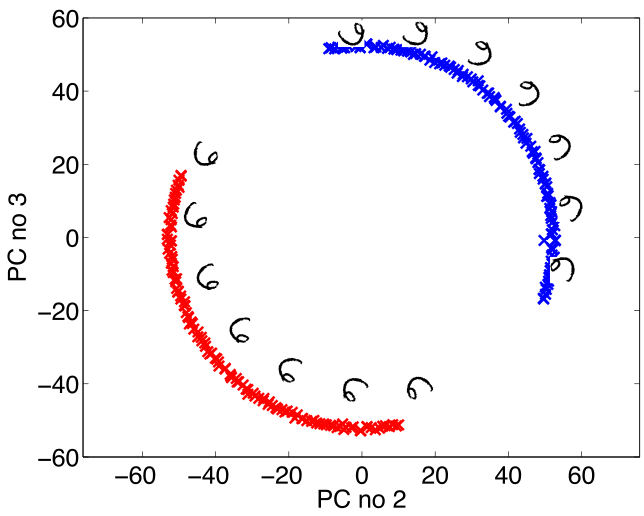

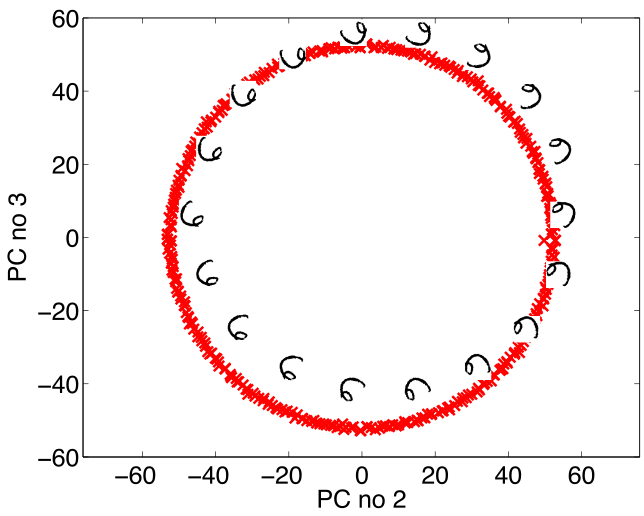

Figure: The rotated sixes projected onto the first two principal components of the ‘rotated data set.’ The data lives on a one dimensional manifold in the 3,648 dimensional space.

Low Dimensional Manifolds

Of course, in practice pure rotation of the image is too simple a model. Digits can undergo several distortions and retain their nature. For example, they can be scaled, they can go through translation, they can udnergo ‘thinning.’ But, for data with ‘structure’ we expect fewer of these distortions than the dimension of the data. This means we expect data to live on a lower dimensonal manifold. This implies that we should deal with high dimensional data by looking for a lower dimensional (non-linear) embedding.

High Dimensional Data Effects

In high dimensional spaces, our intuitions from everyday three dimensional space can fail dramatically. There are two major effects that occur:

1. All data moves to a “shell” at one standard deviation from the mean (known as the “curse of dimensionality”)
2. Distances between points become constant

Let’s explore these effects with some experiments.

import numpy as np
import mlai.plot as plot
import matplotlib.pyplot as plt
import mlai

# Generate high-dimensional Gaussian data
d = 1000  # dimensions
n = 100   # number of points
Y = np.random.normal(size=(n, d))

fig, ax = plt.subplots(figsize=plot.big_wide_figsize)
plot.distance_distribution(Y, title=f'Distance Distribution for {d}-D Gaussian Data', ax=ax)
mlai.write_figure('high-d-distances.svg', directory='./dimred')

Figure: Distribution of pairwise distances between points in high-dimensional Gaussian data. The red line shows the theoretical gamma distribution.

This plot shows the distribution of pairwise distances between points in our high-dimensional Gaussian data. The red line shows the theoretical prediction - a gamma distribution with shape parameter d/2 and scale 2/d. The close match between theory and practice demonstrates how in high dimensions, distances between random points become highly concentrated around a particular value.

Structured High Dimensional Data

Now let’s look at what happens when we introduce structure into our high-dimensional data. We’ll create data that actually lies in a lower-dimensional space, but embedded in high dimensions.

# Generate data that lies on a 2D manifold embedded in 1000D
W = np.random.normal(size=(d, 2))  # 2D latent directions
latent = np.random.normal(size=(n, 2))  # 2D latent points
Y_structured = latent @ W.T  # Project to high dimensions

fig, ax = plt.subplots(figsize=plot.big_wide_figsize)
plot.distance_distribution(Y_structured,
                         title='Distance Distribution for Structured High-D Data',
                         ax=ax)
mlai.write_figure('structured-high-d-distances.svg', directory='./dimred')

Figure: Distribution of pairwise distances for structured high-dimensional data. The distribution differs significantly from pure high-dimensional data, reflecting the underlying 2D structure.

Notice how the distance distribution for the structured data deviates significantly from what we would expect for truly high-dimensional data. Instead of matching the theoretical curve for 1000-dimensional data, it more closely resembles what we would expect for 2-dimensional data. This is because despite living in a 1000-dimensional space, the data actually has an intrinsic dimensionality of 2.

This effect is exactly what we observe in real datasets - they typically have much lower intrinsic dimensionality than their ambient dimension would suggest. This is why dimensionality reduction techniques like PCA can be so effective: they help us discover and work with this lower-dimensional structure.

Exercise 1

Generate your own high-dimensional dataset with known structure and visualize its distance distribution. Try varying the intrinsic dimensionality (e.g. use 3D or 4D latent space) and observe how the distance distribution changes. What happens if you add some noise to the structured data?

High Dimensional Effects in Real Data

We’ve seen how high-dimensional random data behaves in a very specific way, with highly concentrated distance distributions. Now let’s examine some real datasets to see how they differ.

import numpy as np
import mlai.plot as plot
import matplotlib.pyplot as plt
import pods

First let’s look at a motion capture dataset, which despite having high dimension, is constrained by the physics of human movement.

data = pods.datasets.osu_run1()
Y = data['Y']

fig, ax = plt.subplots(figsize=plot.big_wide_figsize)
plot.distance_distribution(Y, title='Distance Distribution for Motion Capture Data', ax=ax)

Notice how the distance distribution is much more spread out than we would expect for random high-dimensional data. This suggests that the motion capture data has much lower intrinsic dimensionality than its ambient dimension, due to the physical constraints of human movement.

Oil Flow Data

Now let’s look at the oil flow dataset, which contains measurements from gamma densitometry sensors.

data = pods.datasets.oil()
Y = data['X']

fig, ax = plt.subplots(figsize=plot.big_wide_figsize)
plot.distance_distribution(Y, title='Distance Distribution for Oil Flow Data', ax=ax)

Again we see a deviation from what we would expect for random high-dimensional data. The oil flow data shows clear structure in its distance distribution, reflecting the physical constraints of fluid dynamics that govern the system.

Implications for Dimensionality Reduction

These examples demonstrate why dimensionality reduction can be so effective on real datasets:

1. Real data typically has strong constraints (physical, biological, economic, etc.) that restrict it to a lower-dimensional manifold
2. This manifold structure is revealed by the distribution of pairwise distances
3. Dimensionality reduction techniques like PCA can discover and exploit this structure

When we see a distance distribution that deviates from theoretical predictions for random high-dimensional data, it suggests that dimensionality reduction might be particularly effective.

Latent Variables and Dimensionality Reduction

Why does dimensionality reduction work on real data? The key insight is that while our measurements may be very high-dimensional, the underlying phenomena we’re measuring often have much lower intrinsic dimensionality. For example:

1. A motion capture recording might have hundreds of coordinates, but these are all generated by a person’s movements that have far fewer degrees of freedom.

2. Genetic data may record thousands of gene expression levels, but these are often controlled by a much smaller number of regulatory processes.

3. Images contain millions of pixels, but the actual meaningful content often lies on a much lower-dimensional manifold.

import numpy as np
import matplotlib.pyplot as plt
import mlai.plot as plot
import mlai

# Example showing how a 1D curve appears in 2D
t = np.linspace(0, 2*np.pi, 100)
x = np.column_stack([np.cos(t), np.sin(t)])

# Plot the data
fig, ax = plt.subplots(1, 2, figsize=plot.big_wide_figsize)
ax[0].plot(x[:, 0], x[:, 1], 'b.')
ax[0].set_xlabel('$x_1$')
ax[0].set_ylabel('$x_2$')

# Plot the latent variable representation
ax[1].plot(t, np.zeros_like(t), 'r.')
ax[1].set_xlabel('$z$')
ax[1].set_yticks([])

mlai.write_figure('latent-variable-example.svg', directory='./dimred')

Figure: Data that appears 2-dimensional (left) can be described by a single latent variable \(z\) (right) that traces out the curve.

This example shows how data that appears to be 2-dimensional (left) can actually be described by a single latent variable \(z\) (right) that traces out the curve. The key premise of dimensionality reduction is finding and working with these simpler underlying representations.

Latent Variables

Latent means hidden, and hidden variables are simply unobservable variables. The idea of a latent variable is crucial to the concept of artificial intelligence, machine learning and experimental design. A latent variable could take many forms. We might observe a man walking along a road with a large bag of clothes and we might infer that the man is walking to the laundrette. Our observations are a highly complex data space, the response in our eyes is processed through our visual cortex, the combination of the individual’s limb movememnts and the direction they are walking in all conflate in our heads to cause us to infer that (perhaps) the individual is going to the laundrette. We don’t know that the man is walking to the laundrette, but we have a model of the world that suggests that it’s a likely outcome for the very complex data. In some ways the latent variable can be seen as a compression of this very complex scene. If I were writing a book, I might write that “A man tripped over whilst walking to the laundrette.” In the reader’s mind an image of a man, perhaps laden with dirty clothes, may occur. All these ideas come from our expectations of the world around us. We can make further inference about the man, some of it perhaps plausible others less so. The man may be going to the laundrette because his washing machine is broken, or because he doesn’t have a large enough flat to have a washing machine, or because he’s carrying a duvet, or because he doesn’t like ironing. All of these may increase in probability given our observation, but they are still latent variables. Unless we follow the man back to his appartment, or start making other enquirires about the man, we don’t know the true answer.

It’s clear that to do inference about any complex system we must include latent variables. Latent variables are extremely powerful. In robotics, they are used to represent the state of the robot. The state of the robot may include its position (in x, y coordinates) its speed, its direction of facing. How are these variables unknown to the robot? Well the robot only posesses sensors, it can make observations of the nearest object in a certain direction, and it may have a map of its environment. If we represent the state of the robot as its position on a map, it may be uncertain of that position. If you go walking or running in the hills around Sheffield, you can take a very high quality ordnance survey map with you. However, unless you are a really excellent orienteer, when you are far from any given landmark, you will probably be uncertain about your true position on the map. These states are also latent variables.

In statistical analysis of experiments you try to control for each aspect of the experiment, in particular by randomization. So if I’m interested in the ability of a particular fertilizer to improve the yield of a particular plant I may design an experiment where I apply the fertilizer to some plants (the treatment group) and withold the fertilizer from others (the control group). I then test to see whether the yield from the treatment group is better (or worse) than the control group. I may find that I have an excellent yield for the treatment group. However, what if I’d (unknowlingly) planted all my treatment plants in a sunny part of the field, and all the control plants in a shady part of the field. That would also be a latent variable, in this case known as a confounder. In statistical experimental design randomization is used to attempt to eliminate the correlated effects of these confounders: you aim to ensure that if these confounders do exist their effects are not correlated with treatment and contorl. This is known as a randomized control trial.

Greek philosophers worried a great deal about what was knowable and what was unknowable. Adherents of philosophical Skeptisism were inspired by the idea that since your senses sometimes give you contradictory information, they cannot be trusted, and in extreme cases they chose to ignore their senses. This is an acknowledgement that very often the true state of the world cannot be known with precision. Unfortunately, these philosophers didn’t have a good understanding of probability, so they were unable to encapsulate their ideas through a degree of belief.

We often use language to express the compression of a complex behavior or patterns in a simpler way, for example we talk about motives as a useful distallation for a perhaps very complex patter of behavior. In physics we use principles of causation and simple laws to describe the world around us. Such motives or underlying principles are difficult to observe directly, our conclusions about them emerge over a period of time by observing indirect consequences of the latent variables.

Epistemic uncertainty allows us to deal with these worries by associating our degree of belief about the state of the world with a probaiblity distribution. This core idea underpins state space modelling, probabilistic graphical models and the wider field of latent variable modelling. In this session we are going to explore the idea in a simple linear system and see how it relates to factor analysis and principal component analysis.

Your Personality

At the beginning of the 20th century there was a great deal of interest amoungst psychologists in formalizing patterns of thought. The approach they used became known as factor analysis. The principle is that we observe a potentially high dimensional vector of characteristics about an individual. To formalize this, social scientists designed questionaires. We can envisage many questions that we may ask, but the assumption is that underlying these questions there are only a few traits that dictate the behavior. These models are known as latent trait models and the analysis is sometimes known as factor analysis. The idea is that there are a few characteristic traits that we are looking to discern. These traits or factors can be extracted by assimilating the high dimensional characteristics of the individual into a few latent factors.

Factor Analysis Model

This causes us to consider a model as follows, if we are given a high dimensional vector of features (perhaps questionaire answers) associated with an individual, \(\mathbf{ y}\), we assume that these factors are actually generated from a low dimensional vector latent traits, or latent variables, which determine the personality. \[ \mathbf{ y}= \mathbf{f}(\mathbf{ z}) + \boldsymbol{ \epsilon}, \] where \(\mathbf{f}(\mathbf{ z})\) is a vector valued function that is dependent on the latent traits and \(\boldsymbol{ \epsilon}\) is some corrupting noise. For simplicity, we assume that the function is given by a linear relationship, \[ \mathbf{f}(\mathbf{ z}) = \mathbf{W}\mathbf{ z} \] where we have introduced a matrix \(\mathbf{W}\) that is sometimes referred to as the factor loadings but we also immediately see is related to our multivariate linear regression models from the . That is because our vector valued function is of the form

\[ \mathbf{f}(\mathbf{ z}) = \begin{bmatrix} f_1(\mathbf{ z}) \\ f_2(\mathbf{ z}) \\ \vdots \\ f_p(\mathbf{ z})\end{bmatrix} \] where there are \(p\) features associated with the individual. If we consider any of these functions individually we have a prediction function that looks like a regression model, \[ f_j(\mathbf{ z}) = \mathbf{ w}_{j, :}^\top \mathbf{ z}, \] for each element of the vector valued function, where \(\mathbf{ w}_{:, j}\) is the \(j\)th column of the matrix \(\mathbf{W}\). In that context each column of \(\mathbf{W}\) is a vector of regression weights. This is a multiple input and multiple output regression. Our inputs (or covariates) have dimensionality greater than 1 and our outputs (or response variables) also have dimensionality greater than one. Just as in a standard regression, we are assuming that we don’t observe the function directly (note that this also makes the function a type of latent variable), but we observe some corrupted variant of the function, where the corruption is given by \(\boldsymbol{ \epsilon}\). Just as in linear regression we can assume that this corruption is given by Gaussian noise, where the noise for the \(j\)th element of \(\mathbf{ y}\) is by, \[ \epsilon_j \sim \mathscr{N}\left(0,\sigma^2_j\right). \] Of course, just as in a regression problem we also need to make an assumption across the individual data points to form our full likelihood. Our data set now consists of many observations of \(\mathbf{ y}\) for diffetent individuals. We store these observations in a design matrix, \(\mathbf{Y}\), where each row of \(\mathbf{Y}\) contains the observation for one individual. To emphasize that \(\mathbf{ y}\) is a vector derived from a row of \(\mathbf{Y}\) we represent the observation of the features associated with the \(i\)th individual by \(\mathbf{ y}_{i, :}\), and place each individual in our data matrix,

\[ \mathbf{Y} = \begin{bmatrix} \mathbf{ y}_{1, :}^\top \\ \mathbf{ y}_{2, :}^\top \\ \vdots \\ \mathbf{ y}_{n, :}^\top\end{bmatrix}, \] where we have \(n\) data points. Our data matrix therefore has \(n\) rows and \(p\) columns. The point to notice here is that each data obsesrvation appears as a row vector in the design matrix (thus the transpose operation inside the brackets). Our prediction functions are now actually a matrix value function, \[ \mathbf{F} = \mathbf{Z}\mathbf{W}^\top, \] where for each matrix the data points are in the rows and the data features are in the columns. This implies that if we have \(q\) inputs to the function we have \(\mathbf{F}\in \Re^{n\times p}\), \(\mathbf{W}\in \Re^{p \times q}\) and \(\mathbf{Z}\in \Re^{n\times q}\).

Exercise 2

Show that, given all the definitions above, if, \[ \mathbf{F} = \mathbf{Z}\mathbf{W}^\top \] and the elements of the vector valued function \(\mathbf{F}\) are given by \[ f_{i, j} = f_j(\mathbf{ z}_{i, :}), \] where \(\mathbf{ z}_{i, :}\) is the \(i\)th row of the latent variables, \(\mathbf{Z}\), then show that \[ f_j(\mathbf{ z}_{i, :}) = \mathbf{ w}_{j, :}^\top \mathbf{ z}_{i, :} \]

Latent Variables vs Linear Regression

The difference between this model and a multiple output regression is that in the regression case we are provided with the covariates \(\mathbf{Z}\), here they are latent variables. These variables are unknown. Just as we have done in the past for unknowns, we now treat them with a probability distribution. In factor analysis we assume that the latent variables have a Gaussian density which is independent across both across the latent variables associated with the different data points, and across those associated with different data features, so we have, \[ x_{i,j} \sim \mathscr{N}\left(0,1\right), \] and we can write the density governing the latent variable associated with a single point as, \[ \mathbf{ z}_{i, :} \sim \mathscr{N}\left(\mathbf{0},\mathbf{I}\right). \] If we consider the values of the function for the \(i\)th data point as \[ \mathbf{f}_{i, :} = \mathbf{f}(\mathbf{ z}_{i, :}) = \mathbf{W}\mathbf{ z}_{i, :} \] then we can use the rules for multivariate Gaussian relationships to write that \[ \mathbf{f}_{i, :} \sim \mathscr{N}\left(\mathbf{0},\mathbf{W}\mathbf{W}^\top\right) \] which implies that the distribution for \(\mathbf{ y}_{i, :}\) is given by \[ \mathbf{ y}_{i, :} = \sim \mathscr{N}\left(\mathbf{0},\mathbf{W}\mathbf{W}^\top + \boldsymbol{\Sigma}\right) \] where \(\boldsymbol{\Sigma}\) the covariance of the noise variable, \(\epsilon_{i, :}\) which for factor analysis is a diagonal matrix (because we have assumed that the noise was independent across the features), \[ \boldsymbol{\Sigma} = \begin{bmatrix}\sigma^2_{1} & 0 & 0 & 0\\ 0 & \sigma^2_{2} & 0 & 0\\ 0 & 0 & \ddots & 0\\ 0 & 0 & 0 & \sigma^2_p\end{bmatrix}. \] For completeness, we could also add in a mean for the data vector \(\boldsymbol{ \mu}\), \[ \mathbf{ y}_{i, :} = \mathbf{W}\mathbf{ z}_{i, :} + \boldsymbol{ \mu}+ \boldsymbol{ \epsilon}_{i, :} \] which would give our marginal distribution for \(\mathbf{ y}_{i, :}\) a mean \(\boldsymbol{ \mu}\). However, the maximum likelihood solution for \(\boldsymbol{ \mu}\) turns out to equal the empirical mean of the data, \[ \boldsymbol{ \mu}= \frac{1}{n} \sum_{i=1}^n \mathbf{ y}_{i, :}, \] regardless of the form of the covariance, \(\mathbf{C}= \mathbf{W}\mathbf{W}^\top + \boldsymbol{\Sigma}\). As a result it is very common to simply preprocess the data and ensure it is zero mean. We will follow that convention for this session.

The prior density over latent variables is independent, and the likelihood is independent, that means that the marginal likelihood here is also independent over the data points. Factor analysis was developed mainly in psychology and the social sciences for understanding personality and intelligence. Charles Spearman was concerned with the measurements of “the abilities of man” and is credited with the earliest version of factor analysis.

Principal Component Analysis

In 1933 Harold Hotelling published on principal component analysis the first mention of this approach (Hotelling, 1933). Hotelling’s inspiration was to provide mathematical foundation for factor analysis methods that were by then widely used within psychology and the social sciences. His model was a factor analysis model, but he considered the noiseless ‘limit’ of the model. In other words he took \(\sigma^2_i \rightarrow 0\) so that he had

\[ \mathbf{ y}_{i, :} \sim \lim_{\sigma^2 \rightarrow 0} \mathscr{N}\left(\mathbf{0},\mathbf{W}\mathbf{W}^\top + \sigma^2 \mathbf{I}\right). \] The paper had two unfortunate effects. Firstly, the resulting model is no longer valid probablistically, because the covariance of this Gaussian is ‘degenerate.’ Because \(\mathbf{W}\mathbf{W}^\top\) has rank of at most \(q\) where \(q<p\) (due to the dimensionality reduction) the determinant of the covariance is zero, meaning the inverse doesn’t exist so the density, \[ p(\mathbf{ y}_{i, :}|\mathbf{W}) = \lim_{\sigma^2 \rightarrow 0} \frac{1}{(2\pi)^\frac{p}{2} |\mathbf{W}\mathbf{W}^\top + \sigma^2 \mathbf{I}|^{\frac{1}{2}}} \exp\left(-\frac{1}{2}\mathbf{ y}_{i, :}\left[\mathbf{W}\mathbf{W}^\top+ \sigma^2 \mathbf{I}\right]^{-1}\mathbf{ y}_{i, :}\right), \] is not valid for \(q<p\) (where \(\mathbf{W}\in \Re^{p\times q}\)). This mathematical consequence is a probability density which has no ‘support’ in large regions of the space for \(\mathbf{ y}_{i, :}\). There are regions for which the probability of \(\mathbf{ y}_{i, :}\) is zero. These are any regions that lie off the hyperplane defined by mapping from \(\mathbf{ z}\) to \(\mathbf{ y}\) with the matrix \(\mathbf{W}\). In factor analysis the noise corruption, \(\boldsymbol{ \epsilon}\), allows for points to be found away from the hyperplane. In Hotelling’s PCA the noise variance is zero, so there is only support for points that fall precisely on the hyperplane. Secondly, Hotelling explicity chose to rename factor analysis as principal component analysis, arguing that the factors social scientist sought were different in nature to the concept of a mathematical factor. This was unfortunate because the factor loadings, \(\mathbf{W}\) can also be seen as factors in the mathematical sense because the model Hotelling defined is a Gaussian model with covariance given by \(\mathbf{C}= \mathbf{W}\mathbf{W}^\top\) so \(\mathbf{W}\) is a factor of the covariance in the mathematical sense, as well as a factor loading.

However, the paper had one great advantage over standard approaches to factor analysis. Despite the fact that the model was a special case that is subsumed by the more general approach of factor analysis it is this special case that leads to a particular algorithm, namely that the factor loadings (or principal components as Hotelling referred to them) are given by an eigenvalue decomposition of the empirical covariance matrix.

Computation of the Marginal Likelihood

\[ \mathbf{ y}_{i,:}=\mathbf{W}\mathbf{ z}_{i,:}+\boldsymbol{ \epsilon}_{i,:},\quad \mathbf{ z}_{i,:} \sim \mathscr{N}\left(\mathbf{0},\mathbf{I}\right), \quad \boldsymbol{ \epsilon}_{i,:} \sim \mathscr{N}\left(\mathbf{0},\sigma^{2}\mathbf{I}\right) \]

\[ \mathbf{W}\mathbf{ z}_{i,:} \sim \mathscr{N}\left(\mathbf{0},\mathbf{W}\mathbf{W}^\top\right) \]

\[ \mathbf{W}\mathbf{ z}_{i, :} + \boldsymbol{ \epsilon}_{i, :} \sim \mathscr{N}\left(\mathbf{0},\mathbf{W}\mathbf{W}^\top + \sigma^2 \mathbf{I}\right) \]

Probabilistic PCA Max. Likelihood Soln (Tipping and Bishop (1999a))

Figure: Graphical model representing probabilistic PCA.

\[p\left(\mathbf{Y}|\mathbf{W}\right)=\prod_{i=1}^{n}\mathscr{N}\left(\mathbf{ y}_{i, :}|\mathbf{0},\mathbf{W}\mathbf{W}^{\top}+\sigma^{2}\mathbf{I}\right)\]

Eigenvalue Decomposition

Eigenvalue problems are widespreads in physics and mathematics, they are often written as a matrix/vector equation but we prefer to write them as a full matrix equation. In an eigenvalue problem you are looking to find a matrix of eigenvectors, \(\mathbf{U}\) and a diagonal matrix of eigenvalues, \(\boldsymbol{\Lambda}\) that satisfy the matrix equation \[ \mathbf{A}\mathbf{U} = \mathbf{U}\boldsymbol{\Lambda}. \] where \(\mathbf{A}\) is your matrix of interest. This equation is not trivially solvable through matrix inverse because matrix multiplication is not commutative, so premultiplying by \(\mathbf{U}^{-1}\) gives \[ \mathbf{U}^{-1}\mathbf{A}\mathbf{U} = \boldsymbol{\Lambda}, \] where we remember that \(\boldsymbol{\Lambda}\) is a diagonal matrix, so the eigenvectors can be used to diagonalise the matrix. When performing the eigendecomposition on a Gaussian covariances, diagonalisation is very important because it returns the covariance to a form where there is no correlation between points.

Positive Definite

We are interested in the case where \(\mathbf{A}\) is a covariance matrix, which implies it is positive definite. A positive definite matrix is one for which the inner product, \[ \mathbf{ w}^\top \mathbf{C}\mathbf{ w} \] is positive for all values of the vector \(\mathbf{ w}\) other than the zero vector. One way of creating a positive definite matrix is to assume that the symmetric and positive definite matrix \(\mathbf{C}\in \Re^{p\times p}\) is factorised into, \(\mathbf{A}in \Re^{p\times p}\), a full rank matrix, so that \[ \mathbf{C}= \mathbf{A}^\top \mathbf{A}. \] This ensures that \(\mathbf{C}\) must be positive definite because \[ \mathbf{ w}^\top \mathbf{C}\mathbf{ w}=\mathbf{ w}^\top \mathbf{A}^\top\mathbf{A}\mathbf{ w} \] and if we now define a new vector \(\mathbf{b}\) as \[ \mathbf{b} = \mathbf{A}\mathbf{ w} \] we can now rewrite as \[ \mathbf{ w}^\top \mathbf{C}\mathbf{ w}= \mathbf{b}^\top\mathbf{b} = \sum_{i} b_i^2 \] which, since it is a sum of squares, is positive or zero. The constraint that \(\mathbf{A}\) must be full rank ensures that there is no vector \(\mathbf{ w}\), other than the zero vector, which causes the vector \(\mathbf{b}\) to be all zeros.

Exercise 3

If \(\mathbf{C}=\mathbf{A}^\top \mathbf{A}\) then express \(c_{i,j}\), the value of the element at the \(i\)th row and the \(j\)th column of \(\mathbf{C}\), in terms of the columns of \(\mathbf{A}\). Use this to show that (i) the matrix is symmetric and (ii) the matrix has positive elements along its diagonal.

Eigenvectors of a Symmetric Matric

Symmetric matrices have orthonormal eigenvectors. This means that \(\mathbf{U}\) is an orthogonal matrix, \(\mathbf{U}^\top\mathbf{U} = \mathbf{I}\). This implies that \(\mathbf{u}_{:, i} ^\top \mathbf{u}_{:, j}\) is equal to 0 if \(i\neq j\) and 1 if \(i=j\).

Practical Considerations

When applying dimensionality reduction in practice, there are several important considerations:

1. How to choose the latent dimensionality
2. How to validate the reduction is capturing important structure
3. What preprocessing steps are needed

import numpy as np
import matplotlib.pyplot as plt
import mlai.plot as plot

def plot_data_reconstruction(X, dim_reducer, num_components):
    """Visualize reconstruction error vs number of components"""
    errors = []
    dims = range(1, num_components+1)

    for d in dims:
        dim_reducer.set_params(n_components=d)
        X_reduced = dim_reducer.fit_transform(X)
        X_reconstructed = dim_reducer.inverse_transform(X_reduced)
        error = np.mean((X - X_reconstructed) ** 2)
        errors.append(error)

    fig, ax = plt.subplots(figsize=plot.big_wide_figsize)
    ax.plot(dims, errors, 'b-')
    ax.set_xlabel('Number of Components')
    ax.set_ylabel('Reconstruction Error')
    ax.set_yscale('log')

One common approach for choosing the latent dimensionality is to look at the reconstruction error as a function of the number of components. An “elbow” in this curve often suggests a good tradeoff between complexity and accuracy.

Before applying dimensionality reduction, it’s usually important to: 1. Center the data by removing the mean 2. Scale features to have unit variance if they’re on different scales 3. Handle missing values appropriately

When Dimensionality Reduction Fails

While dimensionality reduction is powerful, it’s important to understand when it can fail:

1. When the data really is high dimensional with no simpler structure
2. When the relationship between dimensions is highly nonlinear
3. When different parts of the data have different intrinsic dimensionality

import numpy as np
import matplotlib.pyplot as plt
import mlai.plot as plot
import mlai

The Swiss Roll Example

# Generate data that lies on a Swiss roll manifold
def generate_swiss_roll(n_points=1000):
    t = 1.5 * np.pi * (1 + 2 * np.random.rand(n_points))
    y = 21 * np.random.rand(n_points)
    x = t * np.cos(t)
    z = t * np.sin(t)
    return np.column_stack((x, y, z)), t

X, t = generate_swiss_roll()

fig = plt.figure(figsize=plot.big_wide_figsize)
ax = fig.add_subplot(111, projection='3d')
scatter = ax.scatter(X[:, 0], X[:, 1], X[:, 2], c=t, cmap='viridis')
ax.set_xlabel('$x$')
ax.set_ylabel('$y$')
ax.set_zlabel('$z$')
plt.colorbar(scatter)

mlai.write_figure('swiss-roll.svg', directory='./dimred')

Figure: The Swiss roll dataset is a classic example of data with nonlinear structure. The color represents the position along the roll, showing how points that are far apart in the original space are actually close in the intrinsic manifold.

Common Failure Modes

This example shows data lying on a Swiss roll manifold. Linear dimensionality reduction methods like PCA will fail to capture the structure of this data, while nonlinear methods like t-SNE or UMAP may perform better.

Common failure modes include: 1. Using linear methods on nonlinear manifolds 2. Assuming global structure when only local structure exists 3. Not accounting for noise in the data

f

Principal Component Analysis

Principal Component Analysis (PCA) is one of the most fundamental and widely used dimensionality reduction techniques. While commonly credited to Pearson (1901), who was interested in finding “lines and planes of closest fit to systems of points in space,” the method as we will review it today was introduced and named by Hotelling (Hotelling (1933)). The approach is often used as a way of looking for correlations, but Hotelling’s motivation was a principled alternative to Spearman’s factor analysis (Spearman, 1904).

Often PCA is introduced as a method for finding directions of maximum variance in high-dimensional data, and this is the interpretation that is due to Pearson (1901), but philosophically these approaches arre different even though they turn out to be identical mathematically. In a very real sense “many models lead to the PCA algorithm.” But these equivalences are only true when a linear interpretation is sought. Nonlinear extensions of these ideas (maximum variance directions, eigenvalue problems, latent variable models) all lead to different algorithms. However, since the linear algorithm has so many interpretations it is a wise place to begin analysis.

The mathematical foundation of PCA relies on analyzing the sample covariance matrix of the data. For a dataset with \(n\) points, this matrix is given by:

\[ \mathbf{S}=\frac{1}{n}\sum_{i=1}^n\left(\mathbf{ y}_{i, :}-\boldsymbol{ \mu}\right)\left(\mathbf{ y}_{i, :} - \boldsymbol{ \mu}\right)^\top \]

The modern interpretation focuses on finding a set of orthogonal directions (principal components) along which the data varies the most, but Hotelling’s original formulation was derived from the idea of latent variables. The optimization problem we solve today, which maximizes the variance along each direction while maintaining orthogonality constraints, arises as the solution of the original latent variable formulation (Tipping and Bishop, 1999a).

import numpy as np

# Generate correlated 2D Gaussian samples
num_points = 200
mean = np.array([0, 0])
cov = np.array([[2.0, 1.8],
                [1.8, 2.0]])
X = np.random.multivariate_normal(mean, cov, num_points)

Figure: Illustration of PCA on 2D correlated Gaussian data. The arrows show the principal components (eigenvectors scaled by square root of eigenvalues). The ellipse represents the covariance structure.

Probabilistic PCA

This linear relationship between the observed data and the latent variables is at the heart of Hotelling’s original formulation of PCA. It explicitly models the idea that the observed high-dimensional data is generated from a lower-dimensional set of latent variables, with some added noise. This perspective aligns PCA more closely with factor analysis and highlights its nature as a latent variable model.

Probabilistic PCA (PPCA) provides a probabilistic interpretation of PCA by explicitly modeling the generative process that creates the observed data. The model assumes that each high-dimensional data point \(\mathbf{ y}_{i,:}\) is generated from a lower-dimensional latent variable \(\mathbf{ z}_{i,:}\) through a linear transformation with added Gaussian noise: \[ \mathbf{ y}_{i,:} = \mathbf{W}\mathbf{ z}_{i,:} + \boldsymbol{ \epsilon}_{i,:} \] where \(\boldsymbol{ \epsilon}_{i,:} \sim \mathscr{N}\left(\mathbf{0},\sigma^2\mathbf{I}\right)\) represents isotropic Gaussian noise. The model places a standard Gaussian prior over the latent variables: \[ p(\mathbf{ z}_{i,:}) = \mathscr{N}\left(\mathbf{ z}_{i,:}|\mathbf{0},\mathbf{I}\right) \] Given these assumptions, the conditional probability of observing a data point given its latent representation is: \[ p(\mathbf{ y}_{i,:}|\mathbf{ z}_{i,:},\mathbf{W}) = \mathscr{N}\left(\mathbf{ y}_{i,:}|\mathbf{W}\mathbf{ z}_{i,:},\sigma^2\mathbf{I}\right) \] By integrating out the latent variables, we obtain the marginal likelihood of the data: \[ p(\mathbf{ y}_{i,:}|\mathbf{W}) = \mathscr{N}\left(\mathbf{ y}_{i,:}|\mathbf{0},\mathbf{W}\mathbf{W}^{\top}+\sigma^{2}\mathbf{I}\right) \] This probabilistic formulation, developed by Tipping and Bishop (Tipping and Bishop, 1999a), provides a principled framework that not only recovers classical PCA as a special case when \(\sigma^2 \to 0\), but also enables extensions like handling missing data and mixture models.

Figure: Graphical model representing probabilistic PCA.

Probabilistic PCA

In 1997 Tipping and Bishop (Tipping and Bishop, 1999b) and Roweis (Roweis, n.d.) independently revisited Hotelling’s model and considered the case where the noise variance was finite, but shared across all output dimensons. Their model can be thought of as a factor analysis where \[ \boldsymbol{\Sigma} = \sigma^2 \mathbf{I}. \] This leads to a marginal likelihood of the form \[ p(\mathbf{Y}|\mathbf{W}, \sigma^2) = \prod_{i=1}^n\mathscr{N}\left(\mathbf{ y}_{i, :}|\mathbf{0},\mathbf{W}\mathbf{W}^\top + \sigma^2 \mathbf{I}\right) \] where the limit of \(\sigma^2\rightarrow 0\) is not taken. This defines a proper probabilistic model. Tippping and Bishop then went on to prove that the maximum likelihood solution of this model with respect to \(\mathbf{W}\) is given by an eigenvalue problem. In the probabilistic PCA case the eigenvalues and eigenvectors are given as follows. \[ \mathbf{W}= \mathbf{U}\mathbf{L} \mathbf{R}^\top \] where \(\mathbf{U}\) is the eigenvectors of the empirical covariance matrix \[ \mathbf{S} = \sum_{i=1}^n(\mathbf{ y}_{i, :} - \boldsymbol{ \mu})(\mathbf{ y}_{i,:} - \boldsymbol{ \mu})^\top, \] which can be written \(\mathbf{S} = \frac{1}{n} \mathbf{Y}^\top\mathbf{Y}\) if the data is zero mean. The matrix \(\mathbf{L}\) is diagonal and is dependent on the eigenvalues of \(\mathbf{S}\), \(\boldsymbol{\Lambda}\). If the \(i\)th diagonal element of this matrix is given by \(\lambda_i\) then the corresponding element of \(\mathbf{L}\) is \[ \ell_i = \sqrt{\lambda_i - \sigma^2} \] where \(\sigma^2\) is the noise variance. Note that if \(\sigma^2\) is larger than any particular eigenvalue, then that eigenvalue (along with its corresponding eigenvector) is discarded from the solution.

PPCA as Manifold Learning

Probabilistic PCA can be viewed as a simple manifold learning algorithm. It assumes that:

1. The data lies near a linear manifold (subspace) of the high-dimensional space
2. The deviation from this manifold is Gaussian noise
3. The intrinsic dimensionality is specified by the number of retained components

This view helps explain why PPCA works well when the manifold hypothesis holds and the manifold is approximately linear. When the manifold is nonlinear, we need more sophisticated methods like kernel PCA or neural network-based approaches.

Python Implementation of Probabilistic PCA

We will now implement this algorithm in python.

import numpy as np

# probabilistic PCA algorithm
def ppca(Y, q):
    # remove mean
    Y_cent = Y - Y.mean(0)

    # Comute covariance
    S = np.dot(Y_cent.T, Y_cent)/Y.shape[0]
    lambd, U = np.linalg.eig(S)

    # Choose number of eigenvectors
    sigma2 = np.sum(lambd[q:])/(Y.shape[1]-q)
    l = np.sqrt(lambd[:q]-sigma2)
    W = U[:, :q]*l[None, :]
    return W, sigma2

In practice we may not wish to compute the eigenvectors of the covariance matrix directly. This is because it requires us to estimate the covariance, which involves a sum of squares term, before estimating the eigenvectors. We can estimate the eigenvectors directly either through QR decomposition or singular value decomposition. We saw a similar issue arise when , where we also wished to avoid computation of \(\mathbf{Z}^\top\mathbf{Z}\) (or in the case of \(\boldsymbol{\Phi}^\top\boldsymbol{\Phi}\)).

Posterior for Principal Component Analysis

Under the latent variable model justification for principal component analysis, we are normally interested in inferring something about the latent variables given the data. This is the distribution, \[ p(\mathbf{ z}_{i, :} | \mathbf{ y}_{i, :}) \] for any given data point. Determining this density turns out to be very similar to the approach for determining the Bayesian posterior of \(\mathbf{ w}\) in Bayesian linear regression, only this time we place the prior density over \(\mathbf{ z}_{i, :}\) instead of \(\mathbf{ w}\). The posterior is proportional to the joint density as follows, \[ p(\mathbf{ z}_{i, :} | \mathbf{ y}_{i, :}) \propto p(\mathbf{ y}_{i, :}|\mathbf{W}, \mathbf{ z}_{i, :}, \sigma^2) p(\mathbf{ z}_{i, :}) \] And as in the Bayesian linear regression case we first consider the log posterior, \[ \log p(\mathbf{ z}_{i, :} | \mathbf{ y}_{i, :}) = \log p(\mathbf{ y}_{i, :}|\mathbf{W}, \mathbf{ z}_{i, :}, \sigma^2) + \log p(\mathbf{ z}_{i, :}) + \text{const} \] where the constant is not dependent on \(\mathbf{ z}\). As before we collect the quadratic terms in \(\mathbf{ z}_{i, :}\) and we assemble them into a Gaussian density over \(\mathbf{ z}\). \[ \log p(\mathbf{ z}_{i, :} | \mathbf{ y}_{i, :}) = -\frac{1}{2\sigma^2} (\mathbf{ y}_{i, :} - \mathbf{W}\mathbf{ z}_{i, :})^\top(\mathbf{ y}_{i, :} - \mathbf{W}\mathbf{ z}_{i, :}) - \frac{1}{2} \mathbf{ z}_{i, :}^\top \mathbf{ z}_{i, :} + \text{const} \]

Exercise 4

Multiply out the terms in the brackets. Then collect the quadratic term and the linear terms together. Show that the posterior has the form \[ \mathbf{ z}_{i, :} | \mathbf{W}\sim \mathscr{N}\left(\boldsymbol{ \mu}_x,\mathbf{C}_x\right) \] where \[ \mathbf{C}_x = \left(\sigma^{-2} \mathbf{W}^\top\mathbf{W}+ \mathbf{I}\right)^{-1} \] and \[ \boldsymbol{ \mu}_x = \mathbf{C}_x \sigma^{-2}\mathbf{W}^\top \mathbf{ y}_{i, :} \] Compare this to the posterior for the Bayesian linear regression from last week, do they have similar forms? What matches and what differs?

Python Implementation of the Posterior

Now let’s implement the system in code.

Exercise 5

Use the values for \(\mathbf{W}\) and \(\sigma^2\) you have computed, along with the data set \(\mathbf{Y}\) to compute the posterior density over \(\mathbf{Z}\). Write a function of the form

mu_x, C_x = posterior(Y, W, sigma2)

where mu_x and C_x are the posterior mean and posterior covariance for the given \(\mathbf{Y}\).

Don’t forget to subtract the mean of the data Y inside your function before computing the posterior: remember we assumed at the beginning of our analysis that the data had been centred (i.e. the mean was removed).

Numerically Stable and Efficient Version

Just as we saw for and computation of a matrix such as \(\mathbf{Y}^\top\mathbf{Y}\) (or its centred version) can be a bad idea in terms of loss of numerical accuracy. Fortunately, we can find the eigenvalues and eigenvectors of the matrix \(\mathbf{Y}^\top\mathbf{Y}\) without direct computation of the matrix. This can be done with the singular value decomposition. The singular value decompsition takes a matrix, \(\mathbf{Z}\) and represents it in the form, \[ \mathbf{Z} = \mathbf{U}\boldsymbol{\Lambda}\mathbf{V}^\top \] where \(\mathbf{U}\) is a matrix of orthogonal vectors in the columns, meaning \(\mathbf{U}^\top\mathbf{U} = \mathbf{I}\). It has the same number of rows and columns as \(\mathbf{Z}\). The matrices \(\mathbf{\Lambda}\) and \(\mathbf{V}\) are both square with dimensionality given by the number of columns of \(\mathbf{Z}\). The matrix \(\mathbf{\Lambda}\) is diagonal and \(\mathbf{V}\) is an orthogonal matrix so \(\mathbf{V}^\top\mathbf{V} = \mathbf{V}\mathbf{V}^\top = \mathbf{I}\). The eigenvalues of the matrix \(\mathbf{Y}^\top\mathbf{Y}\) are then given by the singular values of the matrix \(\mathbf{Y}^\top\) squared and the eigenvectors are given by \(\mathbf{U}\).

Solution for \(\mathbf{W}\)

Given the singular value decomposition of \(\mathbf{Y}\) then we have \[ \mathbf{W}= \mathbf{U}\mathbf{L}\mathbf{R}^\top \] where \(\mathbf{R}\) is an arbitrary rotation matrix. This implies that the posterior is given by \[ \mathbf{C}_x = \left[\sigma^{-2}\mathbf{R}\mathbf{L}^2\mathbf{R}^\top + \mathbf{I}\right]^{-1} \] because \(\mathbf{U}^\top \mathbf{U} = \mathbf{I}\). Since, by convention, we normally take \(\mathbf{R} = \mathbf{I}\) to ensure that the principal components are orthonormal we can write \[ \mathbf{C}_x = \left[\sigma^{-2}\mathbf{L}^2 + \mathbf{I}\right]^{-1} \] which implies that \(\mathbf{C}_x\) is actually diagonal with elements given by \[ c_i = \frac{\sigma^2}{\sigma^2 + \ell^2_i} \] and allows us to write \[ \boldsymbol{ \mu}_x = [\mathbf{L}^2 + \sigma^2 \mathbf{I}]^{-1} \mathbf{L} \mathbf{U}^\top \mathbf{ y}_{i, :} \] \[ \boldsymbol{ \mu}_x = \mathbf{D}\mathbf{U}^\top \mathbf{ y}_{i, :} \] where \(\mathbf{D}\) is a diagonal matrix with diagonal elements given by \(d_{i} = \frac{\ell_i}{\sigma^2 + \ell_i^2}\).

import scipy as sp
import numpy as np

# probabilistic PCA algorithm using SVD
def ppca(Y, q, center=True):
    """Probabilistic PCA through singular value decomposition"""
    # remove mean
    if center:
        Y_cent = Y - Y.mean(0)
    else:
        Y_cent = Y

    # Comute singluar values, discard 'R' as we will assume orthogonal
    U, sqlambd, _ = sp.linalg.svd(Y_cent.T,full_matrices=False)
    lambd = (sqlambd**2)/Y.shape[0]
    # Compute residual and extract eigenvectors
    sigma2 = np.sum(lambd[q:])/(Y.shape[1]-q)
    ell = np.sqrt(lambd[:q]-sigma2)
    return U[:, :q], ell, sigma2

def posterior(Y, U, ell, sigma2, center=True):
    """Posterior computation for the latent variables given the eigendecomposition."""
    if center:
        Y_cent = Y - Y.mean(0)
    else:
        Y_cent = Y
    C_x = np.diag(sigma2/(sigma2+ell**2))
    d = ell/(sigma2+ell**2)
    mu_x = np.dot(Y_cent, U)*d[None, :]
    return mu_x, C_x

Scikit-learn implementation PCA

We’ve implemented PCA as part of supporting the learning process, but in practice we can use the scikit-learn implementation. Let’s try it on the oil flow data.

%pip install scikit-learn

from sklearn.decomposition import PCA

pca = PCA(n_components=2)
pca.fit(X)
X_pca = pca.transform(X)

Figure: PCA of the oil flow data.

Examples: Motion Capture Data

For our first example we’ll consider some motion capture data of a man breaking into a run. Motion capture data involves capturing a 3-d point cloud to represent a character, often by an underlying skeleton. For this data set, from Ohio State University, we have 54 frame of motion capture, each frame containing 102 values, which are the 3-d locations of 34 different points from the subject’s skeleton.

import pods

data = pods.datasets.osu_run1()
Y = data['Y']

Once the data is loaded in we can examine the first two principal components as follows,

q = 2
U, ell, sigma2 = ppca(Y, q)
mu_x, C_x = posterior(Y, U, ell, sigma2)

import matplotlib.pyplot as plt

plt.plot(mu_x[:, 0], mu_x[:, 1], 'rx-')

Here because the data is a time course, we have connected points that are neighbouring in time. This highlights the form of the run, which involves 3 paces. This projects in our low dimensional space to 3 loops. We can examin how much residual variance there is in the system by looking at sigma2.

print(sigma2)

Robot Navigation Example

In the next example we will load in data from a robot navigation problem. The data consists of wireless access point strengths as recorded by a robot performing a loop around the University of Washington’s Computer Science department in Seattle. The robot records all the wireless access points it can cache and stores their signal strength.

import pods

data = pods.datasets.robot_wireless()
Y = data['Y']
Y.shape

There are 215 observations of 30 different access points. In this case the model is suggesting that the access point signal strength should be linearly dependent on the location in the map. In other words we are expecting the access point strength for the \(j\)th access point at robot position \(x_{i, :}\) to be represented by \(y_{i, j} = \mathbf{ w}_{j, :}^\top \mathbf{ z}_{i, :} + \epsilon_{i,j}\).

U, ell, sigma2 = ppca(Y.T, q)

Interpretations of Principal Component Analysis

Relationship to Matrix Factorization

We can use the robot naviation example to realise that PCA (and factor analysis) are very reminiscient of the that we used for introducing objective functions. In that system we used slightly different notation, \(\mathbf{u}_{i, :}\) for user location in our metaphorical library and \(\mathbf{v}_{j, :}\) for item location in our metaphorical library. To see how these systems are somewhat analagous, now let us think about the user as the robot and the items as the wifi access points. We can plot the relative location of both. This process is known as “SLAM”: simultaneous localisation and mapping. A latent variable model of the type we have developed is one way of performing SLAM. We have an estimate of the landmarks in the system (in this case WIFI access points) and we have an estimate of the robot position. These are analagous to the estimate of the user’s position and the estimate of the items positions in the library. In the matrix factorisation example users are informing us what items they are ‘close’ to by expressing their preferences, in the robot localization example the robot is informing us what access point it is close to by measuring signal strength.

From a personal perspective, I find this analogy quite comforting. I think it is very arguable that one of the mechanisms through which we (as humans) may have developed higher reasoning is through the need to navigate around our environment, identifying landmarks and associating them with our search for food. If such a system were to exist, the idea that it could be readily adapted to other domains such as categorising the nature of the different foodstuffs we were able to forage is intriguing.

From an algorithmic perspective, we also can now realise that matrix factorization and latent variable modelling are effectively the same thing. The only difference is the objective function and our probabilistic (or lack of probabilistic) treatment of the variables. But the prediction function for both systems, \[ f_{i, j} = \mathbf{u}_{i, :}^\top \mathbf{v}_{j, :} \] for matrix factorization or \[ f_{i, j} = \mathbf{ z}_{i, :}^\top \mathbf{ w}_{j, :} \] for probabilistic PCA and factor analysis are the same.

Other Interpretations of PCA: Separating Model and Algorithm

Since Hotelling first introduced his perspective on factor analysis as PCA there has been somewhat of a conflation of the idea of the model underlying PCA (for which it was very clear that Hotelling was inspired by Factor Analysis) and the algorithm that is used to fit that model: the eigenvalues and eigenvectors of the covariance matrix. The eigenvectors of an ellipsoid have been known since the middle of the 19th century as the principal axes of the elipsoid, and they arise through the following additional ideas: seeking the orthogonal directions of maximum variance in a dataset. Pearson in 1901 arrived at the same algorithm driven by a desire to seek a symmetric regression between two covariate/response variables \(x\) and \(y\) (Pearson:01?). He is, therefore, often credited with the invention of principal component analysis, but to me this seems disengenous. His aim was very different from Hotellings, it was just happened that the optimal solution for his model was coincident with that of Hotelling. The approach is also known as the Karhunen Loeve Transform in stochastic process theory and in classical multidimensional scaling the same operation can be shown to be minimising a particular objective function based on interpoint distances in the data and the latent space (see the section on Classical Multidimensional Scaling in Mardia, Kent and Bibby) (Mardia et al., 1979). One of my own contributions to machine learning was deriving yet another model whose linear variant was solved by finding the principal subspace of the covariance matrix (an approach I termed dual probabilistic PCA or probabilistic principal coordinate analysis). Finally, the approach is sometimes referred to simply as singular value decomposition (SVD). The singular value decomposition of a data set has the following form, \[ \mathbf{Y}= \mathbf{V} \boldsymbol{\Lambda} \mathbf{U}^\top \] where \(\mathbf{V}\in\Re^{n\times n}\) and \(\mathbf{U}^\in \Re^{p\times p}\) are square orthogonal matrices and \(\mathbf{\Lambda}^{n \times p}\) is zero apart from its first \(p\) diagonal entries. Singularvalue decomposition gives a diagonalisation of the covariance matrix, because under the SVD we have \[ \mathbf{Y}^\top\mathbf{Y}= \mathbf{U}\boldsymbol{\Lambda}\mathbf{V}^\top\mathbf{V} \boldsymbol{\Lambda} \mathbf{U}^\top = \mathbf{U}\boldsymbol{\Lambda}^2 \mathbf{U}^\top \] where \(\boldsymbol{\Lambda}^2\) is now the eigenvalues of the covariane matrix and \(\mathbf{U}\) are the eigenvectors. So performing the SVD can simply be seen as another approach to determining the principal components.

Separating Model and Algorithm

I’ve given a fair amount of personal thought to this situation and my own opinion that this confusion about method arises because of a conflation of model and algorithm. The model of Hotelling, that which he termed principal component analysis, was really a variant of factor analysis, and it was unfortunate that he chose to rename it. However, the algorithm he derived was a very convenient way of optimising a (simplified) factor analysis, and it’s therefore become very popular. The algorithm is also the optimal solution for many other models of the data, even some which might seem initally to be unrelated (e.g. seeking directions of maximum variance). It is only through the mathematics of this linear system (which also contains some intersting symmetries) that all these ides become related. However, as soon as we choose to non-linearise the system (e.g. through basis functions) we find that each of the non-linear intepretations we can derive for the different models each leads to a very different algorithm (if such an algorithm is possible). For example principal curves of Hastie and Stuetzle (1989) attempt to non-linearise the maximum variance interpretation, kernel PCA of Schölkopf et al. (1998) uses basis functions to form the eigenvalue problem in a nonlinear space, and my own work in this area non-linearises the dual probabilistic PCA (Lawrence, 2005).

My conclusion is that when you are doing machine learning you should always have it clear in your mind what your model is and what your algorithm is. You can recognise your model because it normally contains a prediction function and an objective function. The algorithm on the other hand is the sequence of steps you implement on the computer to solve for the parameters of this model. For efficient implementation, we often modify our model to allow for faster algorithms, and this is a perfectly valid pragmatist’s approach, so conflation of model and algorithm is not always a bad thing. But for clarity of thinking and understanding it is necessary to maintain the separation and to maintain a handle on when and why we perform the conflation.

PCA in Practice

Principal component analysis is so effective in practice that there has almost developed a mini-industry in renaming the method itself (which is ironic, given its origin). In particular Latent Semantic Indexing in text processing is simply PCA on a particular representation of the term frequencies of the document. There is a particular fad to rename the eigenvectors after the nature of the data you are examining, perhaps initially triggered by Turk and Pentland’s paper on eigenfaces, but also with eigenvoices and eigengenes. This seems to be an instantiation of a wider, and hopefully subconcious, tendency in academia to attempt to differentiate one idea from the same idea in related fields in order to emphasise the novelty. The unfortunate result is somewhat of a confusing literature for relatively simple model. My recommendations would be as follows. If you have multivariate data, applying some form of principal component would seem to be a very good idea as a first step. Even if you intend to later perform classification or regression on your data, it can give you understanding of the structure of the underlying data and help you to develop your intuitions about the nature of your data. Intelligent plotting and interaction with your data is always a good think, and for high dimensional data that means that you need some way of visualisation, PCA is typically a good starting point.

PPCA Marginal Likelihood

We have developed the posterior density over the latent variables given the data and the parameters, and due to symmetries in the underlying prediction function, it has a very similar form to its sister density, the posterior of the weights given the data from Bayesian regression. Two key differences are as follows. If we were to do a Bayesian multiple output regression we would find that the marginal likelihood of the data is independent across the features and correlated across the data, \[ p(\mathbf{Y}|\mathbf{Z}) = \prod_{j=1}^p \mathscr{N}\left(\mathbf{ y}_{:, j}|\mathbf{0}, \alpha\mathbf{Z}\mathbf{Z}^\top + \sigma^2 \mathbf{I}\right) \] where \(\mathbf{ y}_{:, j}\) is a column of the data matrix and the independence is across the features, in probabilistic PCA the marginal likelihood has the form, \[ p(\mathbf{Y}|\mathbf{W}) = \prod_{i=1}^n\mathscr{N}\left(\mathbf{ y}_{i, :}|\mathbf{0},\mathbf{W}\mathbf{W}^\top + \sigma^2 \mathbf{I}\right) \] where \(\mathbf{ y}_{i, :}\) is a row of the data matrix \(\mathbf{Y}\) and the independence is across the data points.

Computation of the Log Likelihood

The quality of the model can be assessed using the log likelihood of this Gaussian form. \[ \log p(\mathbf{Y}|\mathbf{W}) = -\frac{n}{2} \log \left| \mathbf{W}\mathbf{W}^\top + \sigma^2 \mathbf{I}\right| -\frac{1}{2} \sum_{i=1}^n\mathbf{ y}_{i, :}^\top \left(\mathbf{W}\mathbf{W}^\top + \sigma^2 \mathbf{I}\right)^{-1} \mathbf{ y}_{i, :} +\text{const} \] but this can be computed more rapidly by exploiting the low rank form of the covariance covariance, \(\mathbf{C}= \mathbf{W}\mathbf{W}^\top + \sigma^2 \mathbf{I}\) and the fact that \(\mathbf{W}= \mathbf{U}\mathbf{L}\mathbf{R}^\top\). Specifically, we first use the decomposition of \(\mathbf{W}\) to write: \[ -\frac{n}{2} \log \left| \mathbf{W}\mathbf{W}^\top + \sigma^2 \mathbf{I}\right| = -\frac{n}{2} \sum_{i=1}^q \log (\ell_i^2 + \sigma^2) - \frac{n(p-q)}{2}\log \sigma^2, \] where \(\ell_i\) is the \(i\)th diagonal element of \(\mathbf{L}\). Next, we use the Woodbury matrix identity which allows us to write the inverse as a quantity which contains another inverse in a smaller matrix: \[ (\sigma^2 \mathbf{I}+ \mathbf{W}\mathbf{W}^\top)^{-1} = \sigma^{-2}\mathbf{I}-\sigma^{-4}\mathbf{W}{\underbrace{(\mathbf{I}+\sigma^{-2}\mathbf{W}^\top\mathbf{W})}_{\mathbf{C}_x}}^{-1}\mathbf{W}^\top \] So, it turns out that the original inversion of the \(p \times p\) matrix can be done by forming a quantity which contains the inversion of a \(q \times q\) matrix which, moreover, turns out to be the quantity \(\mathbf{C}_x\) of the posterior.

Now, we put everything together to obtain: \[ \log p(\mathbf{Y}|\mathbf{W}) = -\frac{n}{2} \sum_{i=1}^q \log (\ell_i^2 + \sigma^2) - \frac{n(p-q)}{2}\log \sigma^2 - \frac{1}{2} \text{tr}\left(\mathbf{Y}^\top \left( \sigma^{-2}\mathbf{I}-\sigma^{-4}\mathbf{W}\mathbf{C}_x \mathbf{W}^\top \right) \mathbf{Y}\right) + \text{const}, \] where we used the fact that a scalar sum can be written as \(\sum_{i=1}^n\mathbf{ y}_{i,:}^\top \mathbf{K}\mathbf{ y}_{i,:} = \text{tr}\left(\mathbf{Y}^\top \mathbf{K}\mathbf{Y}\right)\), for any matrix \(\mathbf{K}\) of appropriate dimensions. We now use the properties of the trace \(\text{tr}\left(\mathbf{A}+\mathbf{B}\right)=\text{tr}\left(\mathbf{A}\right)+\text{tr}\left(\mathbf{B}\right)\) and \(\text{tr}\left(c \mathbf{A}\right) = c \text{tr}\left(\mathbf{A}\right)\), where \(c\) is a scalar and \(\mathbf{A},\mathbf{B}\) matrices of compatible sizes. Therefore, the final log likelihood takes the form: \[ \log p(\mathbf{Y}|\mathbf{W}) = -\frac{n}{2} \sum_{i=1}^q \log (\ell_i^2 + \sigma^2) - \frac{n(p-q)}{2}\log \sigma^2 - \frac{\sigma^{-2}}{2} \text{tr}\left(\mathbf{Y}^\top \mathbf{Y}\right) +\frac{\sigma^{-4}}{2} \text{tr}\left(\mathbf{B}\mathbf{C}_x\mathbf{B}^\top\right) + \text{const} \] where we also defined \(\mathbf{B}=\mathbf{Y}^\top\mathbf{W}\). Finally, notice that \(\text{tr}\left(\mathbf{Y}\mathbf{Y}^\top\right)=\text{tr}\left(\mathbf{Y}^\top\mathbf{Y}\right)\) can be computed faster as the sum of all the elements of \(\mathbf{Y}\circ\mathbf{Y}\), where \(\circ\) denotes the element-wise (or Hadamard) product.

Summary and Key Points

We’ve covered several key ideas about dimensionality reduction:

1. High-dimensional spaces have counter-intuitive properties:
   • The curse of dimensionality
   • Concentration of distances
2. Real data doesn’t behave like random high-dimensional data because:
   • It lies near lower-dimensional manifolds
   • It has structure imposed by physics, biology, or other constraints
3. This structure makes dimensionality reduction possible:
   • PCA finds linear manifolds
   • More sophisticated methods can find nonlinear manifolds
4. The probabilistic perspective helps us:
   • Understand when methods will work
   • Quantify uncertainty in our reduced representations
   • Connect dimensionality reduction to other machine learning approaches

Further Reading

• Chapter 7 up to pg 249 of Rogers and Girolami (2011)

Thanks!

For more information on these subjects and more you might want to check the following resources.

• company: Trent AI
• book: The Atomic Human
• twitter: @lawrennd
• podcast: The Talking Machines
• newspaper: Guardian Profile Page
• blog: http://inverseprobability.com

References
