Bayesian Regression

Overdetermined System

• With two unknowns and two observations: \[ \begin{aligned} y_1 = & mx_1 + c\\ y_2 = & mx_2 + c \end{aligned} \]
• Additional observation leads to overdetermined system. \[ y_3 = mx_3 + c \]
• This problem is solved through a noise model \(\epsilon\sim \mathscr{N}\left(0,\sigma^2\right)\) \[ \begin{aligned} y_1 = mx_1 + c + \epsilon_1\\ y_2 = mx_2 + c + \epsilon_2\\ y_3 = mx_3 + c + \epsilon_3 \end{aligned} \]

Underdetermined System

Underdetermined System

• What about two unknowns and one observation? \[y_1 = mx_1 + c\]

Underdetermined System

A Philosophical Dispute: Probabilistic Treatment of Parameters?

• Bayesian is not because of Bayes’ rule
• It is because parameters (e.g. \(m\) and \(c\) are treated with distributions
• Bayesian vs Frequentist controversy
• My view is its a false dichotomy, these are complementary approaches

Noise Models

• We aren’t modeling entire system.
• Noise model gives mismatch between model and data.
• Gaussian model justified by appeal to central limit theorem.
  • Other models also possible (Student-\(t\) for heavy tails).
• Maximum likelihood with Gaussian noise leads to least squares.

Different Types of Uncertainty

• The first type of uncertainty we are assuming is aleatoric uncertainty.
• The second type of uncertainty we are assuming is epistemic uncertainty.

Aleatoric Uncertainty

• This is uncertainty we couldn’t know even if we wanted to. e.g. the result of a football match before it’s played.
• Where a sheet of paper might land on the floor.

Epistemic Uncertainty

• This is uncertainty we could in principal know the answer too. We just haven’t observed enough yet, e.g. the result of a football match after it’s played.
• What colour socks your lecturer is wearing.

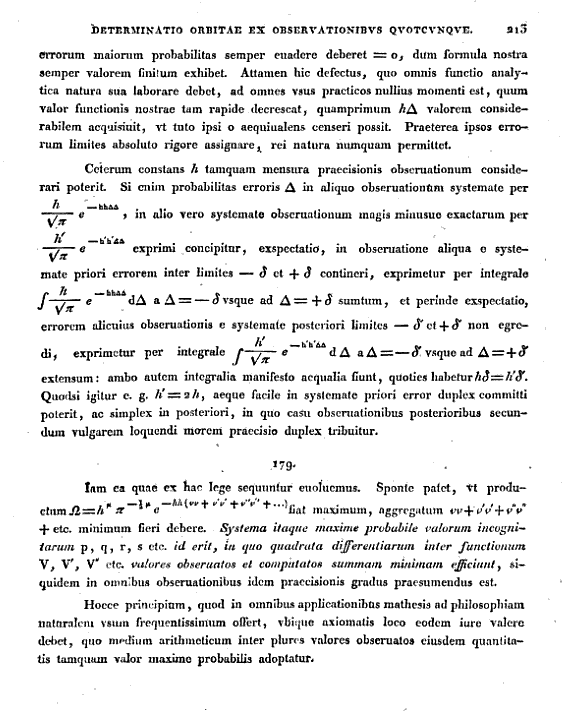

Sum of Squares and Probability

… It is clear, that for the product \(\Omega = h^\mu \pi^{-\frac{1}{2}\mu} e^{-hh(vv + v^\prime v^\prime + v^{\prime\prime} v^{\prime\prime} + \dots)}\) to be maximised the sum \(vv + v ^\prime v^\prime + v^{\prime\prime} v^{\prime\prime} + \text{etc}.\) ought to be minimized. Therefore, the most probable values of the unknown quantities \(p , q, r , s \text{etc}.\), should be that in which the sum of the squares of the differences between the functions \(V, V^\prime, V^{\prime\prime} \text{etc}\), and the observed values is minimized, for all observations of the same degree of precision is presumed.

Prior Distribution

• Bayesian inference requires a prior on the parameters.

• The prior represents your belief before you see the data of the likely value of the parameters.

• For linear regression, consider a Gaussian prior on the intercept:

  \[c \sim \mathscr{N}\left(0,\alpha_1\right)\]

Posterior Distribution

• Posterior distribution is found by combining the prior with the likelihood.
• Posterior distribution is your belief after you see the data of the likely value of the parameters.

Posterior Distribution

• The posterior is found through Bayes’ Rule \[ p(c|y) = \frac{p(y|c)p(c)}{p(y)} \] \[ \text{posterior} = \frac{\text{likelihood}\times \text{prior}}{\text{marginal likelihood}} \]

Bayes Update

Stages to Derivation of the Posterior

• Multiply likelihood by prior
  • they are “exponentiated quadratics,” the answer is always also an exponentiated quadratic because \(\exp(a^2)\exp(b^2) = \exp(a^2 + b^2)\).
• Complete the square to get the resulting density in the form of a Gaussian.
• Recognise the mean and (co)variance of the Gaussian. This is the estimate of the posterior.

Main Trick

\[ p(c) = \frac{1}{\sqrt{2\pi\alpha_1}} \exp\left(-\frac{1}{2\alpha_1}c^2\right) \]

Main Trick

\[ p(c| \mathbf{ y}, \mathbf{ x}, m, \sigma^2) = \frac{p(\mathbf{ y}|\mathbf{ x}, c, m, \sigma^2)p(c)}{p(\mathbf{ y}|\mathbf{ x}, m, \sigma^2)} \]

\[ p(c| \mathbf{ y}, \mathbf{ x}, m, \sigma^2) = \frac{p(\mathbf{ y}|\mathbf{ x}, c, m, \sigma^2)p(c)}{\int p(\mathbf{ y}|\mathbf{ x}, c, m, \sigma^2)p(c) \text{d} c} \]

\[ p(c| \mathbf{ y}, \mathbf{ x}, m, \sigma^2) \propto p(\mathbf{ y}|\mathbf{ x}, c, m, \sigma^2)p(c) \]

\[ \log p(c | \mathbf{ y}, \mathbf{ x}, m, \sigma^2) =-\frac{1}{2\sigma^2} \sum_{i=1}^n(y_i-c \\ & - mx_i)^2-\frac{1}{2\alpha_1} c^2 + \text{const}\]

Complete the Square

\[ \log p(c | \mathbf{ y}, \mathbf{ x}, m, \sigma^2) = -\frac{1}{2\tau^2}(c - \mu)^2 +\text{const} \] \[ \tau^2 = \left(n\sigma^{-2} +\alpha_1^{-1}\right)^{-1} \] \[\mu = \frac{\tau^2}{\sigma^2} \sum_{i=1}^n(y_i-mx_i)\]

The Joint Density

• Really want to know the joint posterior density over the parameters \(c\) and \(m\).
• Could now consider \(m\), but it is easier to consider the multivariate case.

Two Dimensional Gaussian

• Consider height, \(h/m\) and weight, \(w/kg\).
• Could sample height from a distribution: \[ p(h) \sim \mathscr{N}\left(1.7,0.0225\right). \]
• And similarly weight: \[ p(w) \sim \mathscr{N}\left(75,36\right). \]

Height and Weight Models

Independence Assumption

• We assume height and weight are independent.

  \[ p(w, h) = p(w)p(h). \]

Sampling Two Dimensional Variables

displaycode{nu.display_plots(‘independent_height_weight{fig:0>3}.svg,’ directory=‘./ml,’ fig=IntSlider(0, 0, 7, 1))}

Body Mass Index

• In reality they are dependent (body mass index) \(= \frac{w}{h^2}\).
• To deal with this dependence we introduce correlated multivariate Gaussians.

Sampling Two Dimensional Variables

Independent Gaussians

\[ p(w, h) = p(w)p(h) \]

Independent Gaussians

Independent Gaussians

\[ p(w, h) = \frac{1}{\sqrt{2\pi\sigma_1^22\pi\sigma_2^2}} \exp\left(-\frac{1}{2}\left(\begin{bmatrix}w \\ h\end{bmatrix} - \begin{bmatrix}\mu_1 \\ \mu_2\end{bmatrix}\right)^\top\begin{bmatrix}\sigma_1^2& 0\\0&\sigma_2^2\end{bmatrix}^{-1}\left(\begin{bmatrix}w \\ h\end{bmatrix} - \begin{bmatrix}\mu_1 \\ \mu_2\end{bmatrix}\right)\right) \]

Independent Gaussians

\[ p(\mathbf{ y}) = \frac{1}{\det{2\pi \mathbf{D}}^{\frac{1}{2}}} \exp\left(-\frac{1}{2}(\mathbf{ y}- \boldsymbol{ \mu})^\top\mathbf{D}^{-1}(\mathbf{ y}- \boldsymbol{ \mu})\right) \]

Correlated Gaussian

\[ p(\mathbf{ y}) = \frac{1}{\det{2\pi\mathbf{D}}^{\frac{1}{2}}} \exp\left(-\frac{1}{2}(\mathbf{ y}- \boldsymbol{ \mu})^\top\mathbf{D}^{-1}(\mathbf{ y}- \boldsymbol{ \mu})\right) \]

Correlated Gaussian

\[ p(\mathbf{ y}) = \frac{1}{\det{2\pi\mathbf{D}}^{\frac{1}{2}}} \exp\left(-\frac{1}{2}(\mathbf{R}^\top\mathbf{ y}- \mathbf{R}^\top\boldsymbol{ \mu})^\top\mathbf{D}^{-1}(\mathbf{R}^\top\mathbf{ y}- \mathbf{R}^\top\boldsymbol{ \mu})\right) \]

Correlated Gaussian

\[ p(\mathbf{ y}) = \frac{1}{\det{2\pi\mathbf{D}}^{\frac{1}{2}}} \exp\left(-\frac{1}{2}(\mathbf{ y}- \boldsymbol{ \mu})^\top\mathbf{R}\mathbf{D}^{-1}\mathbf{R}^\top(\mathbf{ y}- \boldsymbol{ \mu})\right) \]

\[ \mathbf{C}^{-1} = \mathbf{R}\mathbf{D}^{-1} \mathbf{R}^\top \]

Correlated Gaussian

\[ p(\mathbf{ y}) = \frac{1}{\det{2\pi\mathbf{C}}^{\frac{1}{2}}} \exp\left(-\frac{1}{2}(\mathbf{ y}- \boldsymbol{ \mu})^\top\mathbf{C}^{-1} (\mathbf{ y}- \boldsymbol{ \mu})\right) \] \[ \mathbf{C}= \mathbf{R}\mathbf{D} \mathbf{R}^\top \]

The Prior Density

Let’s assume that the prior density is given by a zero mean Gaussian, which is independent across each of the parameters, \[ \mathbf{ w}\sim \mathscr{N}\left(\mathbf{0},\alpha \mathbf{I}\right) \] In other words, we are assuming, for the prior, that each element of the parameters vector, \(w_i\), was drawn from a Gaussian density as follows \[ w_i \sim \mathscr{N}\left(0,\alpha\right) \] Let’s start by assigning the parameter of the prior distribution, which is the variance of the prior distribution, \(\alpha\).

Revisit Olympics Data

• Use Bayesian approach on olympics data with polynomials.

• Choose a prior \(\mathbf{ w}\sim \mathscr{N}\left(\mathbf{0},\alpha \mathbf{I}\right)\) with \(\alpha = 1\).

• Choose noise variance \(\sigma^2 = 0.01\)

Generating from the Model

\[ \mathbf{ y}= \boldsymbol{ \Phi}\mathbf{ w}+ \boldsymbol{ \epsilon} \]

• Sample \[ \mathbf{ w}\sim \mathscr{N}\left(0,\alpha\mathbf{I}\right) \] \[ \boldsymbol{ \epsilon}\sim \mathscr{N}\left(\mathbf{0},\sigma^2\right) \] with \(\alpha=1\) and \(\sigma^2 = 0.01\).

Olympic Marathon Polynomial Sample

Sampling from the Prior

K = degree + 1
z_vec = np.random.normal(size=K)
w_sample = z_vec*np.sqrt(alpha)

f_sample = Phi_pred@w_sample

Mean Output

• Each sample \(\mathbf{ w}_s\) has a prediction \(\mathbf{ f}_s\)

\[ \mathbf{ f}_s = \boldsymbol{ \Phi}\mathbf{ w}_s. \]

for i in range(num_samples):
    z_vec = np.random.normal(size=K)
    w_sample = z_vec*np.sqrt(alpha)
    f_sample = np.dot(Phi_pred,w_sample)
    _ = ax.plot(x_pred.flatten(), f_sample.flatten(), linewidth=2)

Computing the Posterior

\[ p(\mathbf{ w}| \mathbf{ y}, \mathbf{ x}, \sigma^2) = \mathscr{N}\left(\mathbf{ w}|\boldsymbol{ \mu}_w,\mathbf{C}_w\right) \] with \[ \mathbf{C}_w= \left(\sigma^{-2}\boldsymbol{ \Phi}^\top \boldsymbol{ \Phi}+ \alpha^{-1}\mathbf{I}\right)^{-1} \] and \[ \boldsymbol{ \mu}_w= \mathbf{C}_w\sigma^{-2}\boldsymbol{ \Phi}^\top \mathbf{ y} \]

Multivariate Bayesian Inference

Olympic Marathon Data

• Gold medal times for Olympic Marathon since 1896.
• Marathons before 1924 didn’t have a standardized distance.
• Present results using pace per km.
• In 1904 Marathon was badly organized leading to very slow times.

Image from Wikimedia Commons

Olympic Marathon Data

Olympic Data with Bayesian Polynomials

Hold Out Validation

5-fold Cross Validation

Model Fit

• Marginal likelihood doesn’t always increase as model order increases.
• Bayesian model always has 2 parameters, regardless of how many basis functions (and here we didn’t even fit them).
• Maximum likelihood model over fits through increasing number of parameters.
• Revisit maximum likelihood solution with validation set.

Regularised Mean

• Validation fit here based on mean solution for \(\mathbf{ w}\) only.
• For Bayesian solution \[ \boldsymbol{ \mu}_w = \left[\sigma^{-2}\boldsymbol{ \Phi}^\top\boldsymbol{ \Phi}+ \alpha^{-1}\mathbf{I}\right]^{-1} \sigma^{-2} \boldsymbol{ \Phi}^\top \mathbf{ y} \] instead of \[ \mathbf{ w}^* = \left[\boldsymbol{ \Phi}^\top\boldsymbol{ \Phi}\right]^{-1} \boldsymbol{ \Phi}^\top \mathbf{ y} \]
• Two are equivalent when \(\alpha \rightarrow \infty\).
• Equivalent to a prior for \(\mathbf{ w}\) with infinite variance.
• In other cases \(\alpha \mathbf{I}\) regularizes the system (keeps parameters smaller).

Sampling from the Posterior

• Now check samples by extracting \(\mathbf{ w}\) from the posterior.

Sampling from the Posterior

• Now for \(\mathbf{ y}= \boldsymbol{ \Phi}\mathbf{ w}+ \boldsymbol{ \epsilon}\) need \[ \mathbf{ w}\sim \mathscr{N}\left(\boldsymbol{ \mu}_w,\mathbf{C}_w\right) \] with \(\mathbf{C}_w = \left[\sigma^{-2}\boldsymbol{ \Phi}^\top \boldsymbol{ \Phi}+ \alpha^{-1}\mathbf{I}\right]^{-1}\) and \(\boldsymbol{ \mu}_w =\mathbf{C}_w \sigma^{-2} \boldsymbol{ \Phi}^\top \mathbf{ y}\) \[ \boldsymbol{ \epsilon}\sim \mathscr{N}\left(\mathbf{0},\sigma^2\mathbf{I}\right) \] with \(\alpha=1\) and \(\sigma^2 = 0.01\).

Polynomial Function Samples

Properties of Gaussian Variables

Sum of Gaussian-distributed Variables

Sampling from Gaussians and Summing Up

Matrix Multiplication of Gaussian Variables

\[ f_i = \boldsymbol{ \phi}_i^\top \mathbf{ w} \]

\[ f_i = \sum_{j=1}^K w_j \phi_{i, j} \]

Expectation under Gaussian

\[ \left\langle\mathbf{ f}\right\rangle_{\mathscr{N}\left(\mathbf{ w}|\boldsymbol{ \mu},\mathbf{C}\right)} = \int \mathbf{ f} \mathscr{N}\left(\mathbf{ w}|\boldsymbol{ \mu},\mathbf{C}\right) \text{d}\mathbf{ w}= \int \boldsymbol{ \Phi}\mathbf{ w} \mathscr{N}\left(\mathbf{ w}|\boldsymbol{ \mu},\mathbf{C}\right) \text{d}\mathbf{ w}= \boldsymbol{ \Phi}\int \mathbf{ w} \mathscr{N}\left(\mathbf{ w}|\boldsymbol{ \mu},\mathbf{C}\right) \text{d}\mathbf{ w}= \boldsymbol{ \Phi}\boldsymbol{ \mu} \]

\[ \left\langle\mathbf{ f}\right\rangle_{\mathscr{N}\left(\mathbf{ w}|\mathbf{0},\alpha\mathbf{I}\right)} = \mathbf{0} \]

Expectation under Gaussian

\[ \text{cov}\left(\mathbf{ f}\right)_{\mathscr{N}\left(\mathbf{ w}|\boldsymbol{ \mu},\mathbf{C}\right)} = \left\langle\mathbf{ f}\mathbf{ f}^\top\right\rangle_{\mathscr{N}\left(\mathbf{ w}|\boldsymbol{ \mu},\mathbf{C}\right)} - \left\langle\mathbf{ f}\right\rangle_{\mathscr{N}\left(\mathbf{ w}|\boldsymbol{ \mu},\mathbf{C}\right)}\left\langle\mathbf{ f}\right\rangle_{\mathscr{N}\left(\mathbf{ w}|\boldsymbol{ \mu},\mathbf{C}\right)}^\top \]

\[ \text{cov}\left(\mathbf{ f}\right)_{\mathscr{N}\left(\mathbf{ w}|\boldsymbol{ \mu},\mathbf{C}\right)} = \left\langle\mathbf{ f}\mathbf{ f}^\top\right\rangle_{\mathscr{N}\left(\mathbf{ w}|\boldsymbol{ \mu},\mathbf{C}\right)} - \boldsymbol{ \Phi}\boldsymbol{ \mu}\boldsymbol{ \mu}^\top \boldsymbol{ \Phi}^\top \]

\[ \text{cov}\left(\mathbf{ f}\right)_{\mathscr{N}\left(\mathbf{ w}|\boldsymbol{ \mu},\mathbf{C}\right)} = \left\langle\boldsymbol{ \Phi}\mathbf{ w}\mathbf{ w}^\top \boldsymbol{ \Phi}^\top\right\rangle_{\mathscr{N}\left(\mathbf{ w}|\boldsymbol{ \mu},\mathbf{C}\right)} - \boldsymbol{ \Phi}\boldsymbol{ \mu}\boldsymbol{ \mu}^\top \boldsymbol{ \Phi}^\top \] \[ \text{cov}\left(\mathbf{ f}\right)_{\mathscr{N}\left(\mathbf{ w}|\boldsymbol{ \mu},\mathbf{C}\right)} = \boldsymbol{ \Phi}\left\langle\mathbf{ w}\mathbf{ w}^\top\right\rangle_{\mathscr{N}\left(\mathbf{ w}|\boldsymbol{ \mu},\mathbf{C}\right)} \boldsymbol{ \Phi}^\top - \boldsymbol{ \Phi}\boldsymbol{ \mu}\boldsymbol{ \mu}^\top\boldsymbol{ \Phi}^\top \] Which is dependent on the second moment of the Gaussian, \[ \left\langle\mathbf{ w}\mathbf{ w}^\top\right\rangle_{\mathscr{N}\left(\mathbf{ w}|\boldsymbol{ \mu},\mathbf{C}\right)} = \mathbf{C}+ \boldsymbol{ \mu}\boldsymbol{ \mu}^\top \]

\[ \text{cov}\left(\mathbf{ f}\right)_{\mathscr{N}\left(\mathbf{ w}|\boldsymbol{ \mu},\mathbf{C}\right)} = \boldsymbol{ \Phi}\mathbf{C}\boldsymbol{ \Phi}^\top \] so in the case of the prior distribution, where we have \(\mathbf{C}= \alpha \mathbf{I}\) we can write \[ \text{cov}\left(\mathbf{ f}\right)_{\mathscr{N}\left(\mathbf{ w}|\mathbf{0},\alpha \mathbf{I}\right)} = \alpha \boldsymbol{ \Phi}\boldsymbol{ \Phi}^\top \]

\[ \mathbf{ y}= \mathbf{ f}+ \boldsymbol{ \epsilon} \]

\[ \mathbf{ f}\sim \mathscr{N}\left(\mathbf{0},\alpha\boldsymbol{ \Phi}\boldsymbol{ \Phi}^\top\right) \]

\[ p(\mathbf{ y}) = \mathscr{N}\left(\mathbf{ y}|\mathbf{0},\alpha \boldsymbol{ \Phi}\boldsymbol{ \Phi}^\top + \sigma^2\mathbf{I}\right) \]

Marginal Likelihood

\[ p(\mathbf{ y}|\mathbf{X}, \sigma^2, \alpha) = \frac{1}{(2\pi)^\frac{n}{2}\left|\mathbf{K}\right|^\frac{1}{2}} \exp\left(-\frac{1}{2} \mathbf{ y}^\top \mathbf{K}^{-1} \mathbf{ y}\right) \] \[ \mathbf{K}= \alpha \boldsymbol{ \Phi}\boldsymbol{ \Phi}^\top + \sigma^2 \mathbf{I} \]

Computing the Mean and Error Bars of the Functions

\[ \mathbf{ f}= \boldsymbol{ \Phi}\mathbf{ w} \]

Computing the Expected Output

• Given the posterior for the parameters, how can we compute the expected output at a given location?
• Output of model at location \(\mathbf{ x}_i\) is given by \[ f(\mathbf{ x}_i; \mathbf{ w}) = \boldsymbol{ \phi}_i^\top \mathbf{ w} \]

Computing the Expected Output

• We want the expected output under the posterior density, \(p(\mathbf{ w}|\mathbf{ y}, \mathbf{X}, \sigma^2, \alpha)\).
• Mean of mapping function will be given by \[ \begin{aligned} \left\langle f(\mathbf{ x}_i; \mathbf{ w})\right\rangle_{p(\mathbf{ w}|\mathbf{ y}, \mathbf{X}, \sigma^2, \alpha)} &= \boldsymbol{ \phi}_i^\top \left\langle\mathbf{ w}\right\rangle_{p(\mathbf{ w}|\mathbf{ y}, \mathbf{X}, \sigma^2, \alpha)} \\ & = \boldsymbol{ \phi}_i^\top \boldsymbol{ \mu}_w \end{aligned} \]

Computing Error Bars

\[ \text{cov}\left(\mathbf{ f}\right)_{\mathscr{N}\left(\mathbf{ w}|\boldsymbol{ \mu}_w,\mathbf{C}_w\right)} = \boldsymbol{ \Phi}\mathbf{C}_w \boldsymbol{ \Phi}^\top \]

Variance of Expected Output

• Variance of model at location \(\mathbf{ x}_i\) is given by \[\begin{aligned}\text{var}(f(\mathbf{ x}_i; \mathbf{ w})) &= \left\langle(f(\mathbf{ x}_i; \mathbf{ w}))^2\right\rangle - \left\langle f(\mathbf{ x}_i; \mathbf{ w})\right\rangle^2 \\&= \boldsymbol{ \phi}_i^\top\left\langle\mathbf{ w}\mathbf{ w}^\top\right\rangle \boldsymbol{ \phi}_i - \boldsymbol{ \phi}_i^\top \left\langle\mathbf{ w}\right\rangle\left\langle\mathbf{ w}\right\rangle^\top \boldsymbol{ \phi}_i \\&= \boldsymbol{ \phi}_i^\top \mathbf{C}_i\boldsymbol{ \phi}_i \end{aligned}\] where all these expectations are taken under the posterior density, \(p(\mathbf{ w}|\mathbf{ y}, \mathbf{X}, \sigma^2, \alpha)\).
